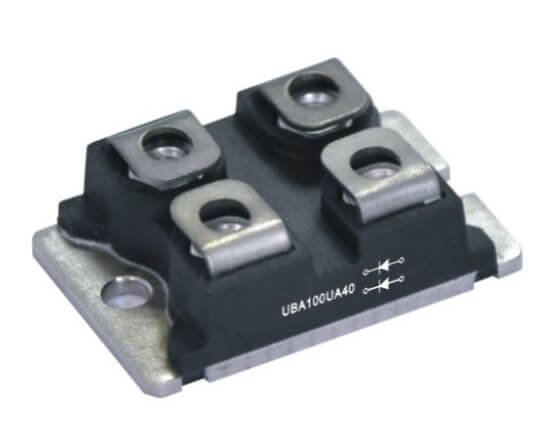

A Fast Recovery Diode (FRD) is a type of diode that has a short reverse recovery time (trr). The reverse recovery time refers to the period it takes for the diode to switch from conducting to blocking when the current is reversed. Compared to standard diodes, a fast recovery diode can recover more quickly, which reduces switching losses and allows for higher switching frequencies.

Key Features:

1. Short Reverse Recovery Time: The reverse recovery time of fast recovery diodes is typically in the range of tens to hundreds of nanoseconds, making them advantageous in high-frequency switching circuits.

2. Low Switching Losses: Due to their fast recovery characteristics, fast recovery diodes generate lower switching losses, improving the efficiency of the circuit.

3. High Reverse Voltage Capability: Fast recovery diodes typically can withstand higher reverse voltages, ranging from tens of volts to several thousand volts.

4. Suitable for High-Frequency Applications: Their quick recovery makes them widely used in high-frequency applications such as power supplies, inverters, and switching power supplies.

Main Applications:

• Switching Power Supplies (SMPS): Used in power converters to reduce energy loss, particularly in high-frequency operations.

• Motor Drives: In variable frequency drives (VFDs) and motor control systems, fast recovery diodes are used to enable rapid switching for better efficiency and lower heat loss.

• High-Frequency Communication Devices: Fast recovery diodes are used in RF circuits of communication equipment to ensure fast response and signal quality.

• Power Electronics: In inverters, DC-DC converters, and other power electronics, fast recovery diodes enhance conversion efficiency and system stability.

Advantages:

• Improved Efficiency: With their quick recovery times, fast recovery diodes reduce energy losses, improving system efficiency.

• High-Frequency Operation: They are suitable for high-frequency switching and fast transitions, reducing switching losses in high-speed circuits.

• Strong Reliability: They provide long-lasting performance and high reliability even in complex electrical environments.

In summary, fast recovery diodes, with their quick recovery characteristics, significantly enhance the efficiency of high-frequency switching circuits and are widely used in power electronics, switching power supplies, and other high-speed electronic applications.

A Schottky diode is a special type of diode that has a metal-semiconductor junction instead of the traditional semiconductor-semiconductor junction found in standard diodes. This structure gives Schottky diodes their distinctive properties, such as low forward voltage drop and fast switching speed. These characteristics make Schottky diodes widely used in high-speed and high-efficiency power supply and signal processing systems.

Key Features:

1. Low Forward Voltage Drop: Schottky diodes typically have a lower forward voltage drop (around 0.2V to 0.4V) compared to standard silicon diodes, resulting in lower conduction losses and improved energy efficiency.

2. Fast Switching Characteristics: Schottky diodes have a very short recovery time, making them suitable for high-speed switching applications and reducing switching losses.

3. Higher Reverse Leakage Current: Despite their advantages in high-speed and low-voltage applications, Schottky diodes have higher reverse leakage currents, making them less suitable for high-voltage applications.

4. Metal-Semiconductor Junction: The Schottky diode is made up of a metal and a semiconductor (usually N-type silicon), as opposed to the P-N junction found in regular diodes.

Main Applications:

1. Switching Power Supplies: Due to their low forward voltage drop and fast recovery time, Schottky diodes are commonly used in switching power supplies to reduce energy loss and improve conversion efficiency.

2. High-Frequency Circuits: Schottky diodes’ fast switching performance makes them ideal for high-frequency applications such as wireless communication and RF circuits, where higher frequency response is needed.

3. Rectifier Circuits: In low-voltage and high-current rectifier circuits, Schottky diodes are favored for their low voltage drop, such as in battery chargers and photovoltaic systems.

4. Protection Circuits: Schottky diodes are often used as protection diodes in reverse polarity protection circuits to safeguard systems from damage due to reverse voltage.

Advantages:

• Increased Efficiency: The low forward voltage drop of Schottky diodes reduces power loss, improving overall system efficiency.

• Fast Response: Their quick switching characteristics make them excellent for high-frequency operations.

• Low Voltage Operation: Schottky diodes are ideal for low-voltage applications, particularly in battery-powered systems.

Limitations:

• Higher Reverse Leakage Current: Schottky diodes have higher reverse leakage current compared to regular diodes, which limits their use in high-voltage applications.

• Higher Cost: Due to their manufacturing process, Schottky diodes are typically more expensive than conventional diodes.

In summary, Schottky diodes are widely used in low-voltage, high-frequency, and high-efficiency electronic systems because of their low forward voltage drop, fast switching speed, and high efficiency. However, their higher reverse leakage current and cost may limit their use in certain high-voltage applications.

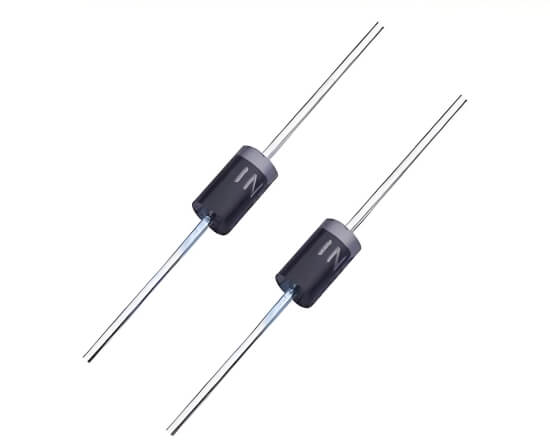

Through-Hole Diode: In-Depth Explanation

A through-hole diode is a diode device that utilizes Through-Hole Technology (THT) packaging. Its leads are inserted into the holes of a circuit board for soldering. These diodes are widely used in traditional electronics design, experimental prototypes, and high-power applications. Below is an in-depth analysis:

1. Definition and Characteristics of Through-Hole Diodes

• Definition:
  A through-hole diode is mounted by inserting long leads through PCB holes and soldering them in place. Compared to surface-mount (SMD) diodes, through-hole diodes are known for solid construction, good heat dissipation, and easy manual soldering.

• Typical Packages:

  Package Model	Shape	Typical Application	Maximum Current/Voltage
  DO-41	Cylindrical Glass/Plastic Package	General Rectification, Protection	1A/1000V (e.g., 1N4007)
  DO-15	Slightly Larger Cylindrical Package	Medium-Power Rectification	3A/1000V (e.g., 1N5408)
  TO-220	With Metal Heat Sink	High-Power Rectification/Freewheeling	10A/1000V (e.g., MUR1010)

2. Core Advantages and Limitations

3. Typical Application Scenarios

1. Power Rectification:

   • Power Frequency Rectification Bridge: For example, the 1N4007 in DO-41 package is used to convert 220V AC to DC.

   • Freewheeling Protection: Fast recovery diodes in TO-220 package (e.g., FR307) are used in IGBT module freewheeling.

2. Prototyping and Education:

   • Breadboard Circuits: Through-hole packaging is easier for manual insertion and debugging (e.g., LED protection diodes in student experiments).

3. High-Power Equipment:

   • Welding Machines and Power Adapters: Use DO-15 or TO-220 packaged diodes to handle large currents (e.g., 1N5408 for 3A load).

4. Repair and Replacement:

   • Traditional Equipment Repairs: Through-hole diodes are easy to identify and replace (e.g., in older TV power boards).

4. Through-Hole Diode vs. Surface-Mount Diode (SMD) Comparison

5. Selection and Usage Considerations

1. Parameter Matching:

   • Reverse Voltage (VRRM): Should be higher than the maximum reverse voltage in the circuit by 1.5 times (e.g., for 220V AC rectification, choose 1000V reverse voltage).

   • Current (IF): Choose 1.2 to 1.5 times the load current to prevent overheating (e.g., for a 3A load, choose a 5A diode).

2. Heat Dissipation Design:

   • High-power applications (e.g., TO-220) require heat sinks, and PCB copper area should be at least 10 cm².

3. Polarity Identification:

   • The cathode of through-hole diodes is usually marked with a color ring (e.g., black ring) or a notch in the package, so the direction must be considered during soldering.

4. Compatibility with SMD:

   • SMD diodes can replace through-hole models (e.g., LL4148 replaces 1N4148 through-hole), but the PCB layout may need adjustment.

6. Common Models and Recommended Manufacturers

Conclusion

Through-hole diodes, with their high reliability, ease of use, and superior heat dissipation, remain indispensable in traditional electronics design, high-power devices, and repair scenarios. While surface-mount diodes dominate in miniaturization and high-frequency applications, through-hole models continue to be the preferred choice in specific settings (e.g., experimentation, industrial power supplies). When selecting a diode, it is important to balance power requirements, space constraints, and mounting methods to make the optimal choice of packaging and parameters.

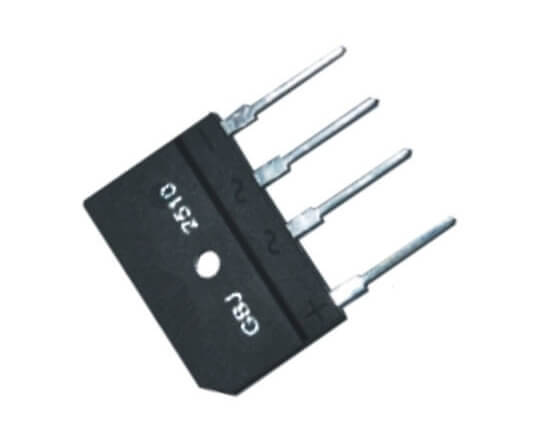

Flat Bridge Rectifier: In-Depth Explanation

A flat bridge rectifier is a flat-packaged full-bridge rectifier module, integrated with four diodes to form a bridge rectifier circuit. It is specifically designed to convert alternating current (AC) into direct current (DC), featuring high current capacity, compact structure, and easy installation. Below is an in-depth analysis:

1. Definition and Structure of Flat Bridge Rectifiers

• Definition:
  A flat bridge rectifier is a packaging form of the bridge rectifier, named for its flat shape. It is commonly used in power adapters, industrial equipment, and other applications, replacing discrete diodes in rectification circuits.

• Internal Structure:
  Composed of four diodes arranged in a full-bridge topology, flat bridge rectifiers can be either single-phase (4 leads) or three-phase (5 leads). Typical packages include GBU, KBP, and DB series.

2. Key Features and Advantages

3. Typical Application Scenarios

4. Key Parameters and Selection Guide

1. Voltage Parameters:

   • Peak Reverse Voltage (VRRM): Should be at least twice the input voltage (e.g., for 220V AC, choose a 600V or higher rating).

2. Current Parameters:

   • Average Forward Current (IF(AV)): Choose 1.5 times the load current (e.g., for a 5A load, select an 8A flat bridge rectifier).

3. Package Types:

   • GBU Series: Features metal backplates for heat dissipation, suitable for high currents (>10A).

   • KBP Series: Plastic package, cost-effective, suitable for 1A–6A applications.

   • DB Series: Miniaturized for small power (<1A) compact designs.

5. Flat Bridge Rectifier vs. Other Rectification Solutions Comparison

6. Mainstream Manufacturers and Model Recommendations

7. Usage Considerations

1. Heat Dissipation Design:

   • For high-current scenarios (e.g., GBU2510), add a heat sink, apply thermal grease to the contact area, and ensure temperature rise is below 50°C.

2. Polarity Identification:

   • Flat bridge rectifiers typically mark the pins with “~” for AC input and “+”/“-” for DC output, so the direction must be carefully noted during soldering.

3. Surge Protection:

   • Use a varistor (e.g., 14D471K) across the input side to suppress voltage spikes.

4. Derating for High Temperatures:

   • In environments above 75°C, reduce the current rating by 20%-30%.

Conclusion

Flat bridge rectifiers, with their integration, high reliability, and heat dissipation advantages, are the preferred solution for medium- to high-power AC-DC conversion, particularly in industrial equipment, power adapters, and other applications. When selecting a model, focus on voltage/current ratings, packaging for heat dissipation, and cost, and consider the SMD bridge rectifier solution for high-frequency or ultra-compact designs. For traditional repairs or small-scale projects, the ease of use and reliability of flat bridge rectifiers make them indispensable.

Here's the technical document for the Square Bridge Rectifier in English:

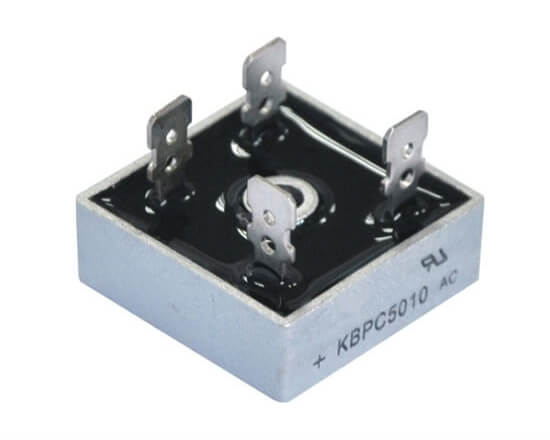

Square Bridge Rectifier Detailed Explanation

A Square Bridge Rectifier is a bridge rectifier module with a square package that integrates four diodes to convert alternating current (AC) into direct current (DC). Its design emphasizes compactness, high current capacity, and ease of installation, and it is widely used in power systems, industrial equipment, and home appliances. Below is a detailed analysis of its core features:

1. Definition and Structure of the Square Bridge Rectifier

• Definition:
  A Square Bridge Rectifier is a type of bridge rectifier with a square packaging form. Internally, it consists of four diodes arranged in a full-bridge topology, available in single-phase (4 pins) or three-phase (5 pins) configurations.

• Typical Packaging:

  Package Series	Physical Features	Current/Voltage Range	Typical Models
  KBP Series	Square plastic package, 4 pins	0.5A8A / 50V1000V	KBL406 (4A/600V)
  GBJ Series	Square metal base package	10A35A / 50V1600V	GBJ2510 (25A/1000V)
  DB Series	Miniature square plastic package	0.5A2A / 50V1000V	DB107 (1A/1000V)

2. Core Features and Advantages

3. Typical Application Scenarios

4. Key Parameters and Selection Guide

1. Voltage Parameters:

   • Peak Reverse Voltage (VRRM): Should be 1.5 to 2 times the peak value of the input AC voltage (e.g., for 220V AC, choose above 600V).

2. Current Parameters:

   • Average Forward Current (IF(AV)): Select 1.2 to 1.5 times the maximum load current (e.g., for a 5A load, choose an 8A model).

3. Package Selection:

   • Plastic Package (KBP/DB series): Small power, low-cost applications (<8A).

   • Metal Base (GBJ series): High power applications (>10A), requires external heatsink.

5. Square Bridge Rectifier vs. Other Rectification Solutions Comparison

6. Main Manufacturers and Model Recommendations

7. Usage Considerations

1. Heat Management:

   • High power models (e.g., GBJ3515) require heatsinks, and thermal paste should be applied to the contact surface to maintain a temperature rise of <50°C.

2. Polarity Identification:

   • Pins are marked with “~” (AC input), and “+” and “-” (DC output), so ensure correct polarity when soldering.

3. Surge Protection:

   • Install a varistor (e.g., 20D series) or transient voltage suppression (TVS) diode on the input side to protect against voltage spikes.

4. Derating:

   • In high-temperature environments (>75°C), reduce the current rating by 20%-30%.

Summary
The Square Bridge Rectifier, with its compact square packaging, flexible installation options, and high reliability, is an ideal choice for medium-power AC-DC conversion. The metal base models (e.g., GBJ series) are particularly suitable for high-power industrial applications, while plastic packages (e.g., KBP series) are widely used in small household appliances. When selecting, consider current requirements, heat dissipation conditions, and package compatibility, and for high-frequency or ultra-compact designs, explore SMD bridge rectifiers.

Here’s the Single-Phase Bridge Rectifier detailed explanation in English:

Single-Phase Bridge Rectifier Detailed Explanation

A Single-Phase Bridge Rectifier is a full-bridge circuit composed of four diodes, used to convert single-phase alternating current (AC) into direct current (DC). It is a fundamental component in the power electronics field. Below is a core analysis of its features:

1. Definition and Core Functionality

• Definition:
  A single-phase bridge rectifier consists of four diodes connected in a full-bridge topology, converting the input single-phase AC into full-wave pulsating DC.

• Core Functionality:

  • Implements full-wave rectification, which is more efficient than half-wave rectification (theoretical efficiency is about 81%).

  • Suppresses the energy loss in the negative half of the AC cycle, providing smoother DC output (requires a filter capacitor).

2. Structure and Working Principle

1. Circuit Structure

• Four Diodes:
  The diodes are divided into two groups (D1-D4 and D2-D3), which alternate conducting to form the current loop.

• Input/Output Pins:

  • AC Input: Marked as “~” or “AC,” connected to the two ends of the AC power supply.

  • DC Output: Marked as “+” and “-,” outputting pulsating DC voltage.

Circuit Symbol:

       +----|>|----+
AC1 ~-| D1     D3 |--+
       |          |  |
       +----|<|----+  |
                     |
                     (+) DC Output
                     |
       +----|>|----+  |
AC2 ~-| D2     D4 |--+
       |          |
       +----|<|----+

2. Working Principle

• Positive Half-Cycle:
  When AC1 is positive, the current path is: AC1 → D1 → Load → D4 → AC2.

• Negative Half-Cycle:
  When AC2 is positive, the current path is: AC2 → D2 → Load → D3 → AC1.

• Output Waveform:
  The output is full-wave pulsating DC (without the negative half-cycle), which needs a filter capacitor to smooth it into near-DC.

3. Key Parameters and Selection Guide

Selection Tips:

1. Voltage: Choose VRRM ≥ 2 × the peak AC input voltage (e.g., for 220V AC, select ≥ 600V).

2. Current: Select IF(AV) = 1.5 × load current (e.g., for a 2A load, choose a 3A model).

3. Heat Dissipation: For high-power scenarios, select metal base packaging (e.g., GBJ series) and use a heatsink.

4. Typical Application Scenarios

5. Single-Phase Bridge Rectifier vs. Other Rectification Solutions

6. Common Issues and Solutions

1. Excessive Heating:

   • Cause: Overcurrent or inadequate heat dissipation.

   • Solution: Select a higher current-rated model, add heatsinks, or parallel multiple rectifiers to balance the current.

2. Low Output Voltage:

   • Cause: Forward voltage drop of diodes (approximately 0.7V per diode, total loss of 1.4V).

   • Solution: Choose diodes with a lower forward voltage drop (e.g., Schottky rectifiers), or increase the input voltage.

3. Noise Interference:

   • Cause: High-frequency switching noise coupling (e.g., in switch-mode power supplies).

   • Solution: Add EMI filters on the input side and filter capacitors on the output side.

7. Mainstream Manufacturers and Recommended Models

Summary
The Single-Phase Bridge Rectifier is a core component for AC-DC conversion, offering full-wave rectification efficiency and simple structure. It is widely used in power systems from consumer electronics to industrial equipment. When selecting, focus on voltage rating, current, and heat dissipation design. For high-frequency or ultra-compact applications, consider SMD rectifiers or integrated module solutions. It is an indispensable choice for repair or experimental scenarios due to its ease of use and low cost.

Here’s the Three-Phase Bridge Rectifier detailed explanation in English:

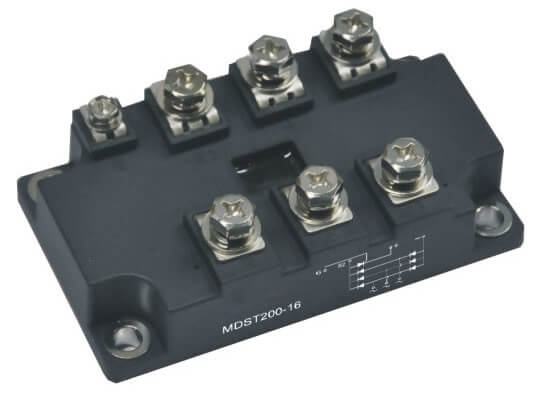

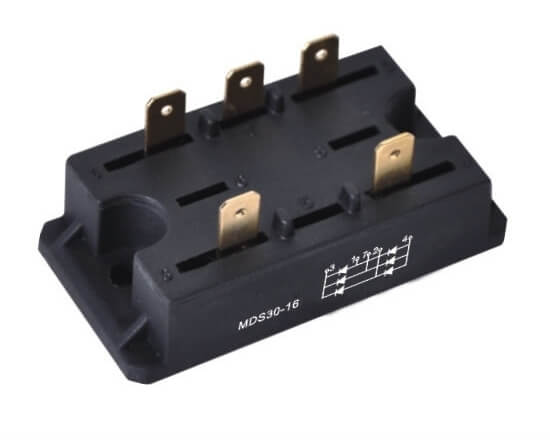

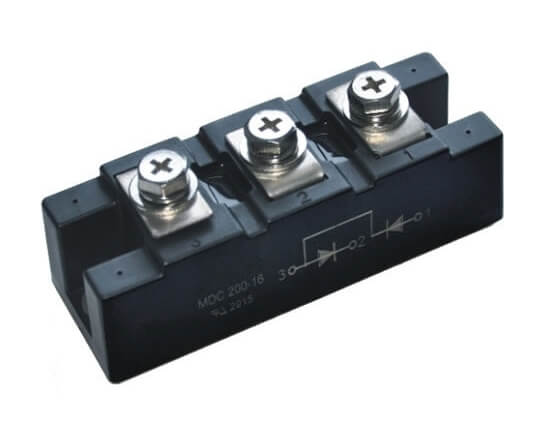

Three-Phase Bridge Rectifier Detailed Explanation

A Three-Phase Bridge Rectifier is an efficient power electronic device used to convert three-phase alternating current (AC) into direct current (DC). It is composed of six diodes or thyristors (SCRs) arranged in a full-bridge topology and is widely applied in industrial high-power equipment, power systems, and renewable energy fields. Below is a detailed analysis of its core technology:

1. Core Definition and Structure

• Definition:
  The three-phase bridge rectifier converts three-phase AC into smooth DC using a six-diode/SCR full-bridge circuit, providing low ripple and high efficiency, making it ideal for high-power applications.

• Typical Structure:

  • Six Diodes: Divided into two groups (upper bridge arm: D1/D3/D5, lower bridge arm: D2/D4/D6), connected in a three-phase full-bridge.

  • Input/Output Pins:

    • AC Input: Three-phase lines (L1/L2/L3) connected.

    • DC Output: Positive (+) and negative (-) terminals for pulsating DC output.

Circuit Symbol Diagram:

       L1 ──┬── D1 ──┬── (+)
            │        │
       L2 ──┼── D3 ──┼──
            │        │
       L3 ──┼── D5 ──┼──
            │        │
            ├── D2 ──┴── (-)
            ├── D4
            └── D6

2. Working Principle

1. Conduction Rules:

   • At any moment, the diode in the upper bridge arm with the highest voltage potential and the diode in the lower bridge arm with the lowest voltage potential will conduct.

   • Example: When L1 has the highest voltage and L2 has the lowest, the current path is L1 → D1 → Load → D4 → L2.

2. Output Characteristics:

   • Output Voltage Waveform: Six-pulse DC with a ripple frequency of 6 times the base frequency (for a 50Hz system, this would be 300Hz).

   • Average DC Voltage: Vdc=33πVLL≈1.35×VLLV_{dc} = \frac{3\sqrt{3}}{\pi} V_{LL} \approx 1.35 \times V_{LL} (line voltage RMS).

3. Core Advantages

4. Typical Application Scenarios

5. Three-Phase Bridge Rectifier vs. Single-Phase Bridge Rectifier

6. Key Parameters and Selection Guide

1. Voltage Rating:

   • Reverse Voltage (VRRM): Should be ≥ 1.5 times the peak value of the input line voltage (e.g., for a 380V three-phase system, choose >1200V).

2. Current Capability:

   • Average Current (IF(AV)): Select 1.2 times the load current (e.g., for a 500A load, select a 600A module).

3. Heat Dissipation Design:

   • Use metal base packaging (e.g., water-cooled modules) or forced air cooling to ensure junction temperature <125°C.

4. Topology Expansion:

   • Replace diodes with SCRs for phase-controlled voltage regulation (e.g., in electroplating power supplies).

7. Common Issues and Solutions

1. Harmonic Interference:

   • Problem: The rectifier causes grid harmonics to exceed limits.

   • Solution: Add input filters (e.g., LCL filters) or use PWM rectification techniques (e.g., VIENNA topology).

2. Inadequate Cooling:

   • Problem: The module overheats and fails under high current.

   • Solution: Use dual-sided water-cooling (e.g., Pin-Fin structure) or parallel modules for current sharing.

3. Voltage Imbalance:

   • Problem: Unbalanced three-phase input voltage causes output fluctuations.

   • Solution: Add input voltage regulators or use active rectification (e.g., three-phase PFC).

Summary
The three-phase bridge rectifier is a core component for high efficiency, low ripple, and high power density, making it essential in industrial high-power equipment and renewable energy systems. Its six-pulse output significantly outperforms single-phase rectifiers, especially in 380V/690V three-phase grid scenarios. When selecting, focus on voltage rating, current capacity, and heat dissipation design, and consider filtering or active rectification for harmonic-sensitive applications. With the rise of SiC devices, three-phase bridge rectifiers are evolving towards higher frequencies and efficiency, supporting smart grids and green energy transitions.

Here’s the detailed explanation of the SCR Bridge Rectifier in English:

SCR Bridge Rectifier Detailed Explanation

The SCR Bridge Rectifier is a bridge rectifier circuit composed of Silicon Controlled Rectifiers (SCRs). Not only can it convert alternating current (AC) to direct current (DC), but it also provides phase control to adjust the output voltage or current. This makes it widely used in high-power applications requiring precise power control. Below is the detailed technical analysis:

1. Core Definition and Structure

• Definition:
  The SCR bridge rectifier utilizes the triggering characteristic of SCRs, where controlling the gate signal's timing (phase angle) adjusts the output DC voltage or current, enabling controllable rectification.

• Typical Structure:

  • Single-phase Rectifier: A full-bridge topology consisting of 4 SCRs.

  • Three-phase Rectifier: A full-bridge topology consisting of 6 SCRs connected in a three-phase configuration.

  • Control Circuit: Includes a trigger pulse generation module, synchronization transformer, and protection circuits.

Single-phase SCR Bridge Rectifier Circuit Diagram:

       +----SCR1----+
AC1 ~-| G       A |--+
       |          |  |
       +----SCR4----+  |
                     (+) DC Output
                     |
       +----SCR2----+  |
AC2 ~-| G       A |--+
       |          |
       +----SCR3----+

2. Working Principle

1. Conduction Conditions:

   • For an SCR to conduct under forward voltage, it needs a gate trigger pulse. Once triggered, the SCR stays on until the current drops below the holding current (IH) or a reverse voltage is applied.

2. Phase Control:

   • Triggering Angle (α): The time interval between the zero crossing of the AC voltage and the trigger pulse (0°–180°) determines the output voltage.

   • Output Voltage Formula (Single-phase):
     Vdc=Vmπ(1+cos⁡α)V_{dc} = \frac{V_m}{\pi} (1 + \cos\alpha)
     (where Vm is the peak AC voltage)

3. Output Waveform:

   • By adjusting the triggering angle, the output DC voltage is continuously adjustable from the full-wave rectified value (α=0°) to zero (α=180°).

3. Core Advantages and Application Scenarios

1. Advantages

• Adjustable Output Voltage: Output DC voltage/current can be precisely regulated by controlling the triggering angle.

• High Power Handling: Single modules can support thousands of amperes of current (e.g., industrial plating power supplies).

• Surge Resistance: SCRs can withstand high transient currents (e.g., motor startup surges).

2. Typical Applications

4. SCR Bridge Rectifier vs. Diode Bridge Rectifier

5. Key Parameters and Selection Guide

1. Voltage/Current Ratings:

   • Reverse Blocking Voltage (VDRM): ≥ 2 times the peak input voltage (e.g., for 380V AC, select >1200V).

   • On-State Average Current (IT(AV)): Select 2.0 times the maximum load current (e.g., for 500A load, select 750A module).

2. Triggering Circuit Requirements:

   • The synchronization signal must match the frequency and phase of the AC supply.

   • The trigger pulse should have sufficient amplitude (>5V) and width (>20μs) to ensure reliable conduction.

3. Heat Dissipation Design:

   • Use water-cooling or air-cooling modules with dual-sided water-cooling plates.

6. Design Challenges and Solutions

Summary
The SCR bridge rectifier enables flexible adjustment of the DC output via phase control and is a core component for high-power industrial equipment (such as electroplating and motor speed control) and high-voltage DC transmission systems. Its design needs to focus on trigger synchronization, heat dissipation, and harmonic suppression, and in high-precision scenarios, closed-loop control (such as PID algorithms) should be used. Despite challenges in efficiency and harmonic interference, its voltage control capability is indispensable in scenarios requiring dynamic power management.
